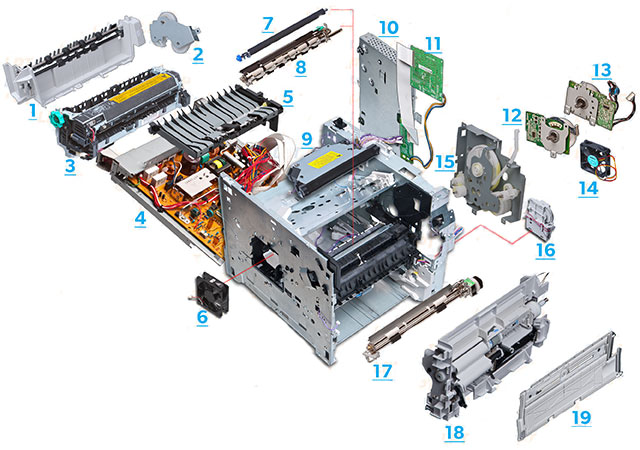

Home > Support > Printer Diagrams > LaserJet 4250 Series

  1. Delivery Asm: RM1-0026
  2. Duplexing Gear Asm: RM1-0002
  3. Fuser: RM1-1082
  4. Power Supply: RM1-1070
  5. Feed Belt Asm: RM1-0025
  6. Fan, Left-side: RK2-02787
  7. Transfer Roller: RM1-1110
  8. Reg. Asm: RM1-1098
  9. Scanner: RM1-1067
  10. Formatter, network: Q3652-67901; non-network: Q3653-67904
  11. DC Controller: RM1-1108
  12. Main Motor: RK2-0272
  13. Cartr. Motor: RK2-0274
  14. Fan, R: RK2-0280
  15. Main Dr: RM1-1066
  16. Lifter Dr: RM1-1074
  17. Feed Roller Asm: RM1-0012
  18. Tray 1 PU Asm: RM1-1097
  19. Tray 1: RM1-0005
