Home > Support > Printer Diagrams > LaserJet M3027 Series

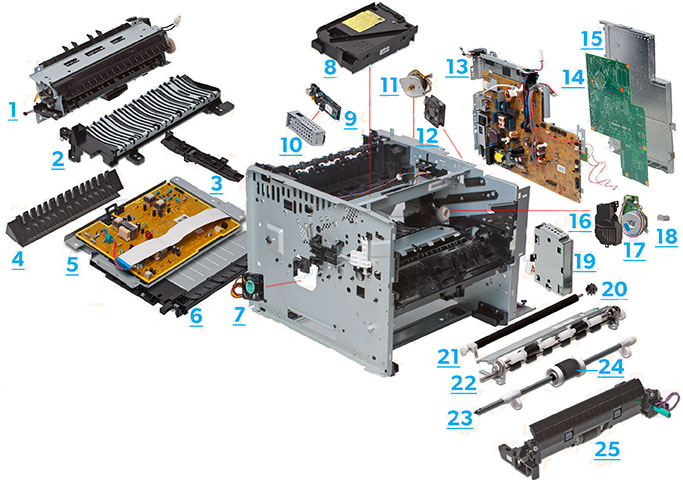

  1. Fuser: RM1-3717 (RM1-3740)
  2. Feed Guide Asm: RM1-3760
  3. Position Guide Asm: RM1-1506
  4. Duplex Inlet Guide: RC1-4096
  5. High Voltage Power Supply: RM1-3758
  6. Lower Feed Asm: RM1-3759
  7. Fan, Left: RK2-1499
  8. Laser Scanner: RM1-1521
  9. Fax/Modem: Q3701-60014
  10. Sheet Metal Cage for Fax/Modem: CB414-60148
  11. Stepping DC Motor: RK2-1489
  12. Right Fan: RK2-1497
  13. Engine Controller: RM1-3774
  14. Formatter, Q7819-61009
  15. Formatter Metal Cover: CB414-60192
  16. Main Motor Cover: RC1-4108
  17. Main Motor: RK2-1488
  18. 16-tooth Gear: RU5-0951
  19. Hard Disk Drive, 40GB: 5851-3833
  20. Transfer Roller Right Bushing: RC1-0922
  21. Transfer Roller: RM1-1508
  22. Registration Asm: RM1-3715
  23. MP Pickup Roller Asm: RM1-3716
  24. MP Pickup Roller: RL1-0568
  25. Pickup Asm: RM1-3762
