Home > Support > Printer Diagrams > Color LaserJet 4700 Series

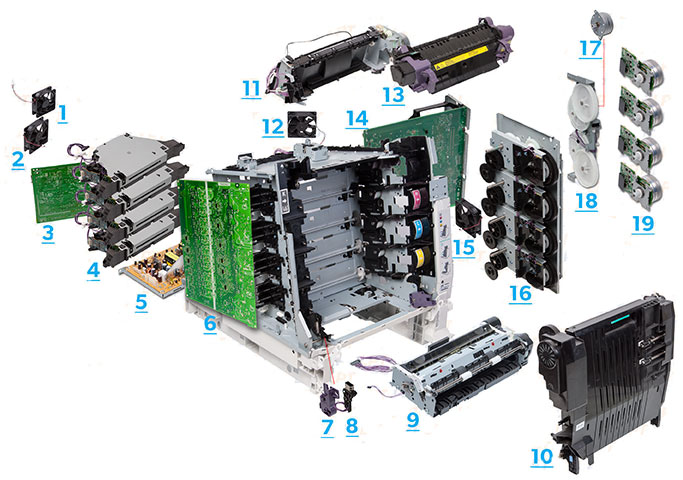

  1. Delivery Fan: RK2-0621
  2. Upper Exhaust Fan: RK2-0623
  3. DC Controller: RM1-1607
  4. Laser Scanner: RM1-1591
  5. Low Voltage Power Supply: RK2-0627
  6. High Voltage Power PCB: RM1-1608
  7. Left ETB Cap: RC1-4386
  8. Connector Guide Asm: RM1-1675
  9. Feed Asm: RM1-1756
  10. ETB: Q7504A
  11. Delivery Asm: RM1-1730
  12. Fan: RK2-0623
  13. Fuser: RM1-3131
  14. Formatter, 4700 base model: Q7491-69003; 4700ph+: Q7495-69002; 4700n, -dn, -dtn: Q7492-67903; CP4005: CB503-69001
  15. Power Supply Fan: RK2-0622
  16. Main Drive Asm: RM1-1716
  17. DC Stepping Motor: RK2-0618
  18. Disengaging Drive Asm: RM1-1717
  19. Motor Asm: RM1-1659
