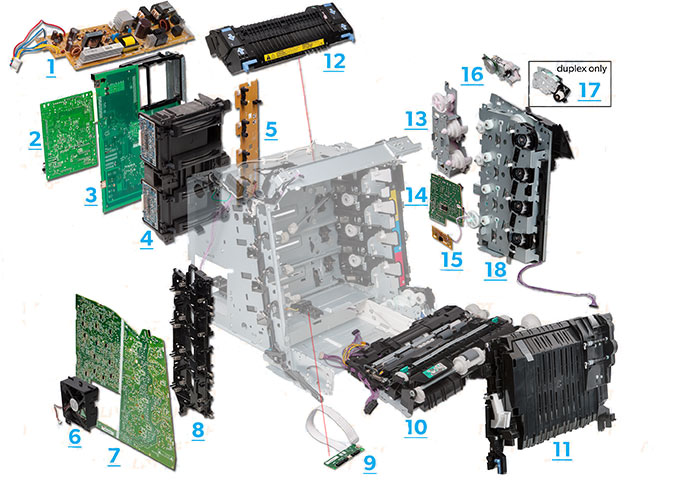

Home > Support > Printer Diagrams > Color LaserJet 3000 Series




  1. LVPS: RK2-0956
  2. DC Controller, 3000: RM1-2600; 3600, 3800, CP3505: RM1-2580
  3. Formatter, 3000, 3800, non-duplex: Q5982-67907; duplex: -67908; 3600: Q5987-67903; CP3505: CB441-69005
  4. Scanner: 3000: RM1-6339; 3600, 3800, CP3505: RM1-6338
  5. Cartridge Sensor PCB: RM1-2585
  6. Fan: RK2-0954
  7. HVPS: RM1-2578
  8. Contact Holder: RM1-2683
  9. Relay PCA: RM1-2582
  10. P/U Asm, 3000: RM1-2774; 3600, 3800, CP3505: RM1-2755
  11. ETB: RM1-2752
  12. Fuser: RM1-2763
  13. Developing Separation Dr Asm: RM1-2687
  14. Driver PCA: RM1-2581
  15. Cassette Sensor PCA: RM1-2576
  16. Fuser Dr Asm: RM1-2668
  17. Duplex Feed Dr Asm: RM1-2720
  18. Main Dr Asm: RM1-2751
